› Mono Solar Panels / Mono Half-Cell PERC 525-560W Solar Module

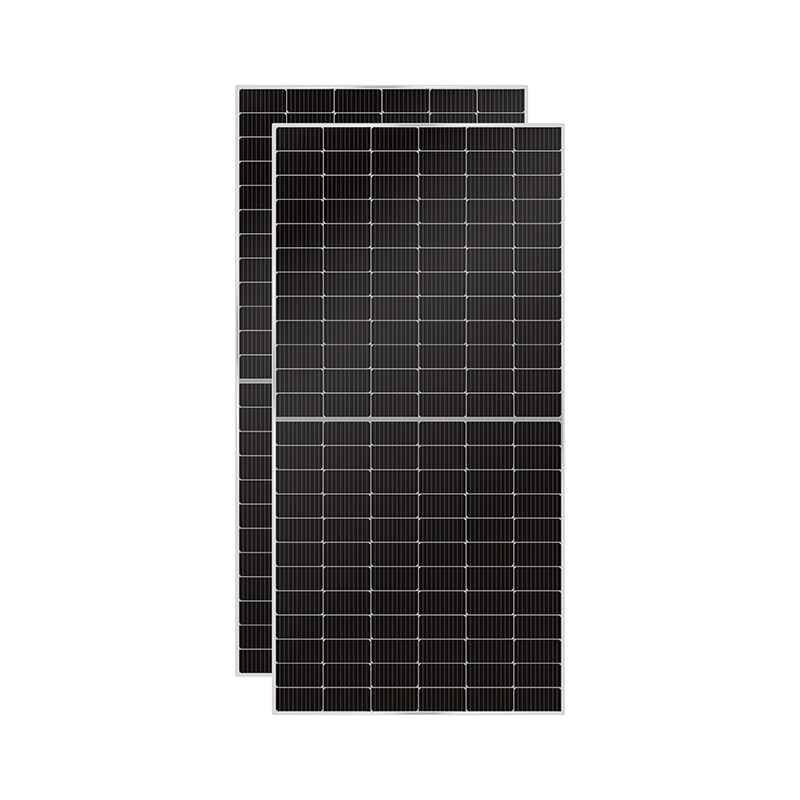

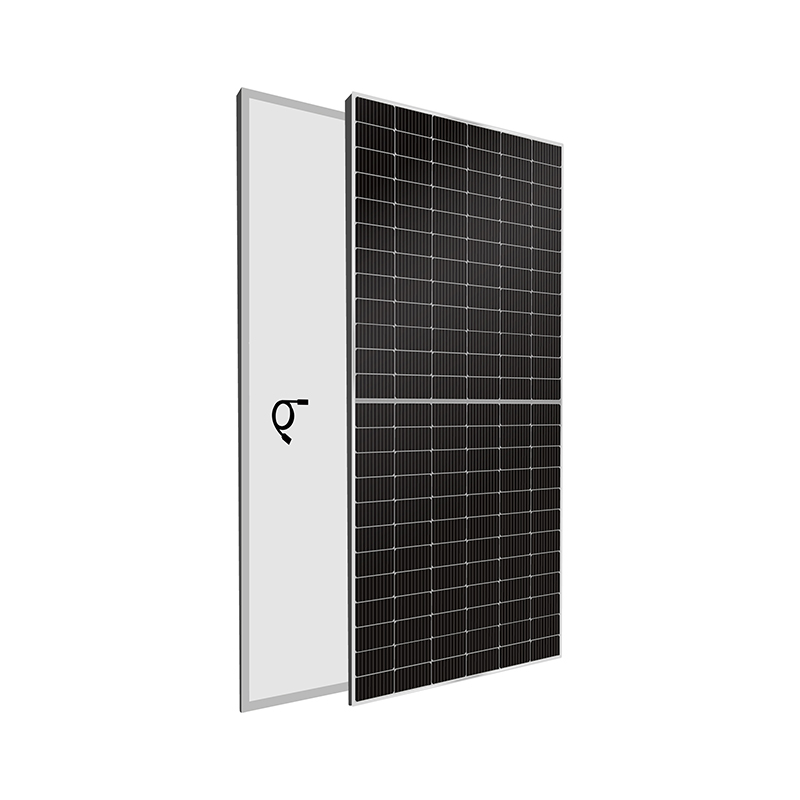

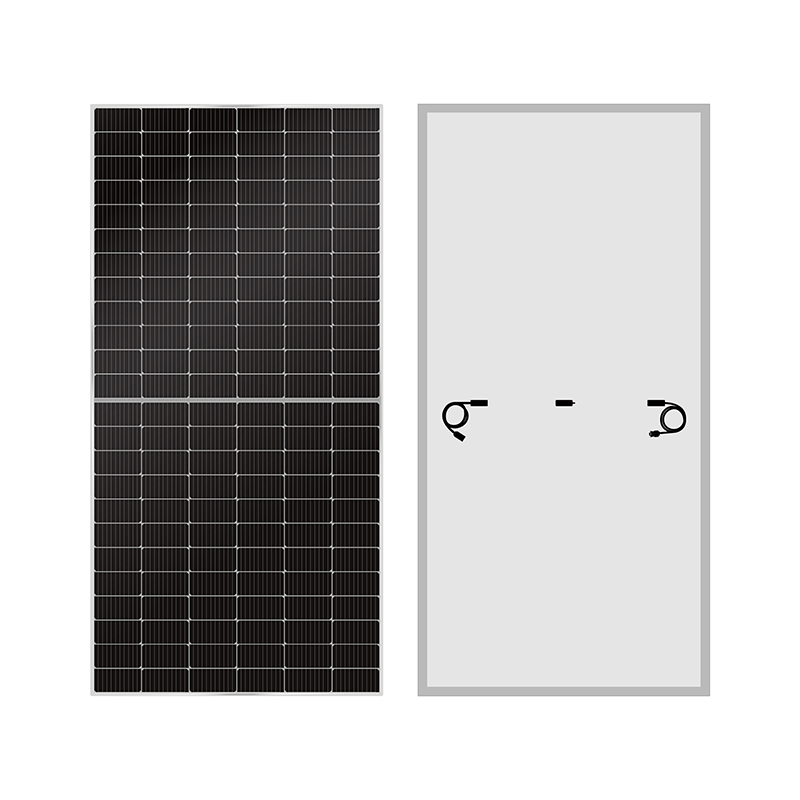

Mono Half-Cell PERC 525-560W Solar Module

Type: Monofacial
Cell Type: Monocrystalline PERC half-cell
Number of cells:144
Maximum system voltage:1500V DC
Maximum fuse rated current:25A
Frame:Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet:white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm,length can be customized

ORDER Now

Product Code	LK-144M-525W525W	LK-144M-530W530W	LK-144M-535W535W	LK-144M-540W540W	LK-144M-545W545W	LK-144M-550W550W	LK-144M-560W560W
Rated Maximum Power at STC(w) STC(w)	525	530	535	540	545	550	560
Open Circuit Voltage(VOC/v) Voc/v	49.15	49.61	49.87	49.95	50.04	50.28	50.43
Maximum Power Voltage(Vmp/V) Vmp/V	41.15	41.28	41.51	41.70	41.92	42.11	42.26
Short Circuit Current(Isc/A)Isc/A	13.65	13.66	13.72	13.78	13.84	13.90	14.09
Maximum Power Current(imp/A)imp/A	12.76	12.84	12.89	12.95	13.00	13.06	13.25
Dimension(mm)Dim.(mm)	2279113435
Weight(kg)Weight(kg)	27
Power tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.29%/°C
γ Pmp	-0.4%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 144M- ()
