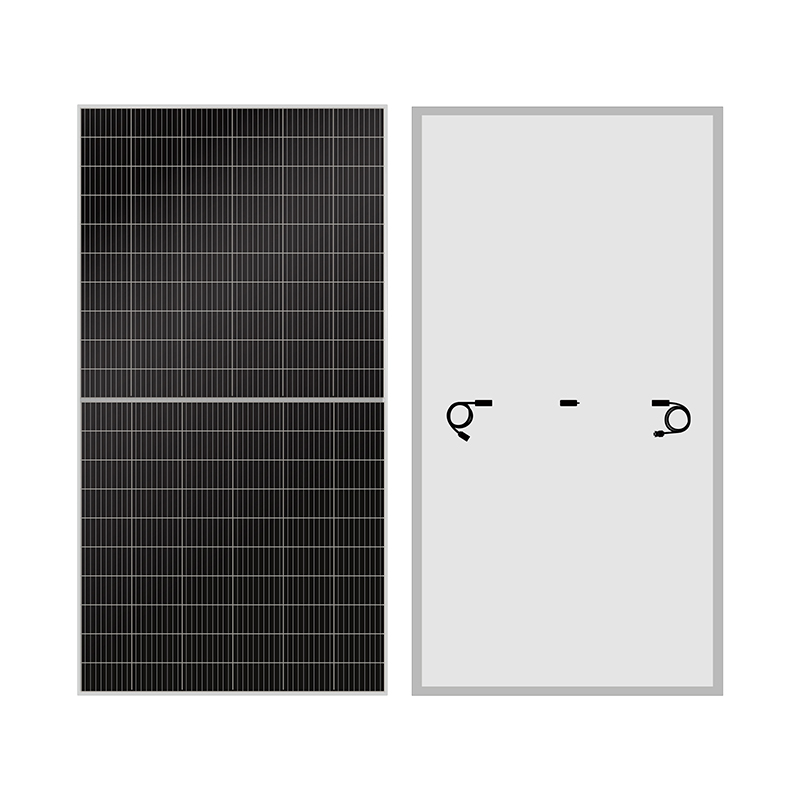

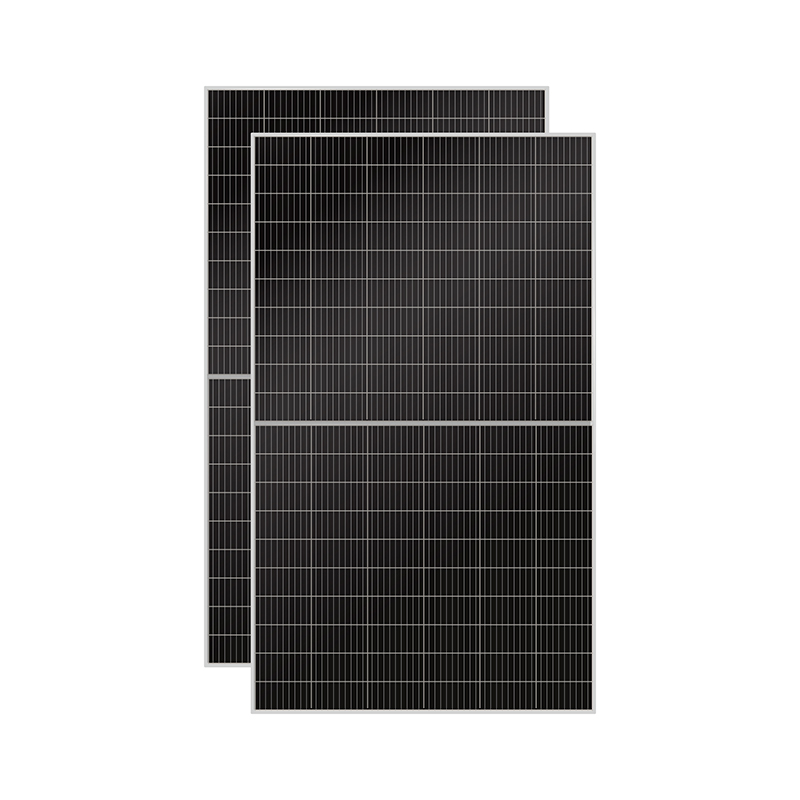

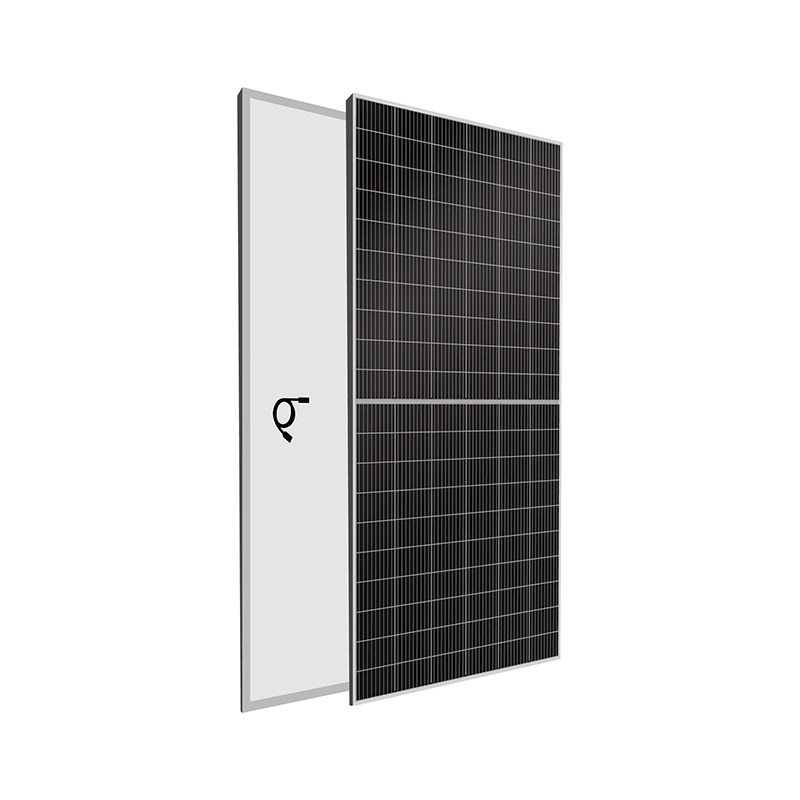

Mono Half-cell 580W-600W Solar Panel

Type: Monofacial
Cell Type: Monocrystalline half-cell PERC
Number of cells:120
Maximum system voltage:1500V DC
Maximum fuse rated current:30A
Frame: Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet: white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm, length can be customized

ORDER Now

Product Code	LK-120M-580W580W	LK-120M-585W585W	LK-120M-590W590W	LK-120M-595W595W	LK-120M-600W600W	LK-120M-605W605W
Rated Maximum Power at STC(w) STC(w)	580	585	590	595	600	605
Open Circuit Voltage(VOC/v) Voc/v	40.7	40.9	41.1	41.3	41.5	41.7
Maximum Power Voltage(Vmp/V) Vmp/V	33.76	33.95	34.14	34.35	34.54	34.75
Short Circuit Current(Isc/A)Isc/A	18.21	18.26	18.31	18.36	18.41	18.46
Maximum Power Current(imp/A)imp/A	17.18	17.23	17.28	17.32	17.37	17.41
Dimension(mm)Dim.(mm)	2172130335
Weight(kg)Weight(kg)	31
Power Tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.29%/°C
γ Pmp	-0.4%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 120M- ()
