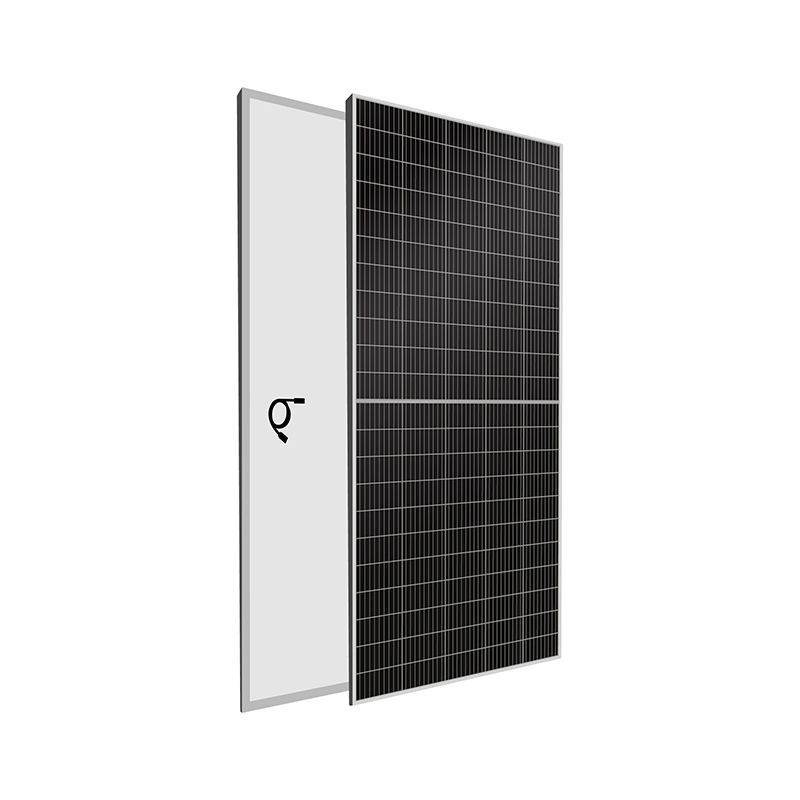

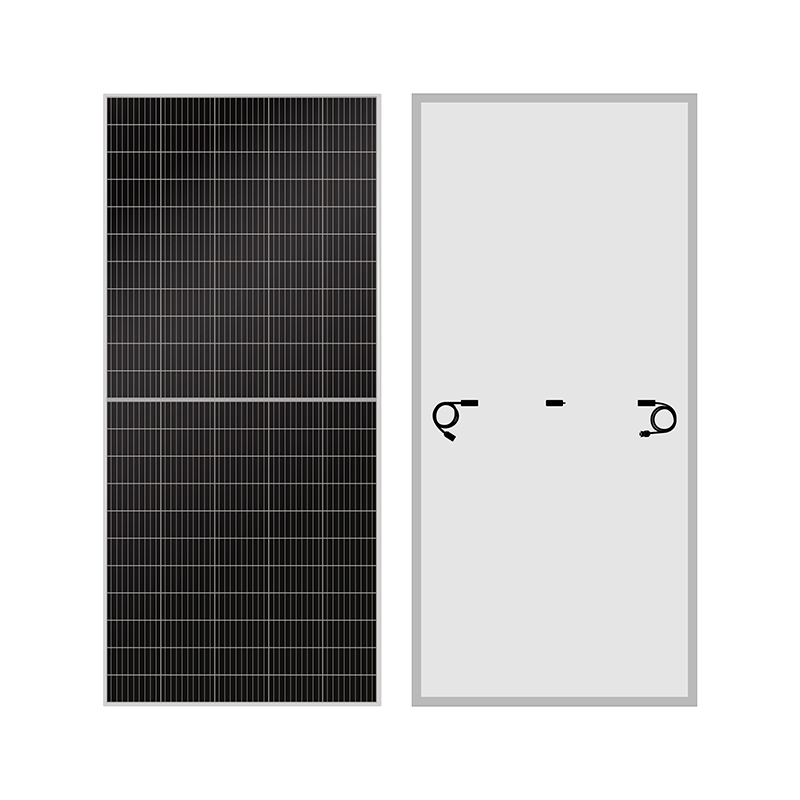

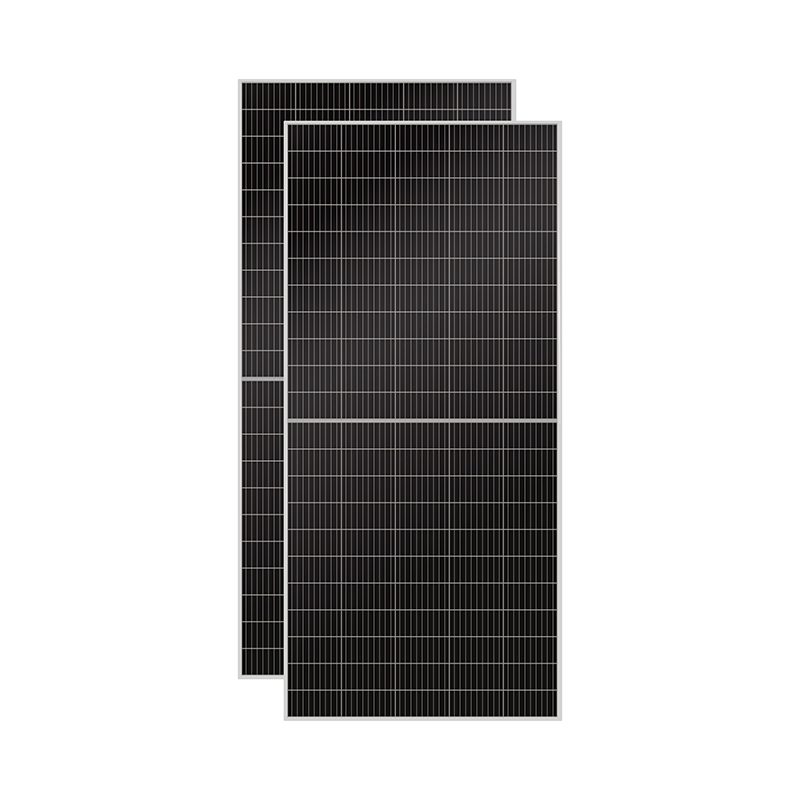

Mono half-cell 530W-555W Solar Panel

Type: Monofacial
Cell Type: Monocrystalline half-cell PERC
Number of cells:110
Maximum system voltage:1500V DC
Maximum fuse rated current:30A
Frame: Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet: white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm, length can be customized

ORDER Now

Product Code	LK-110M-530W530W	LK-110M-535W535W	LK-110M-540W540W	LK-110M-545W545W	LK-110M-550W550W	LK-110M-555W555W
Rated Maximum Power at STC(w) STC(w)	530	535	540	545	550	555
Open Circuit Voltage(VOC/v) Voc/v	37.51	37.68	37.84	38.01	38.17	38.17
Maximum Power Voltage(Vmp/V) Vmp/V	30.91	31.08	31.24	31.46	31.63	31.79
Short Circuit Current(Isc/A)Isc/A	18.09	18.14	18.18	18.22	18.26	18.38
Maximum Power Current(imp/A)imp/A	17.15	17.22	17.29	17.32	17.39	17.46
Dimension(mm)Dim.(mm)	2384109635
Weight(kg)Weight(kg)	28
Power Tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.29%/°C
γ Pmp	-0.4%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 110M- ()
