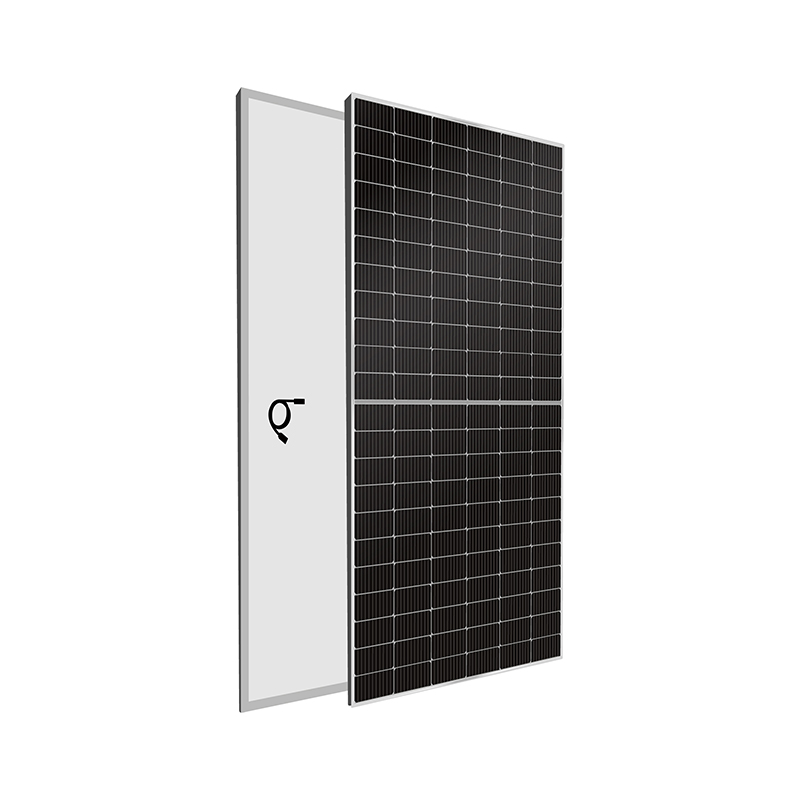

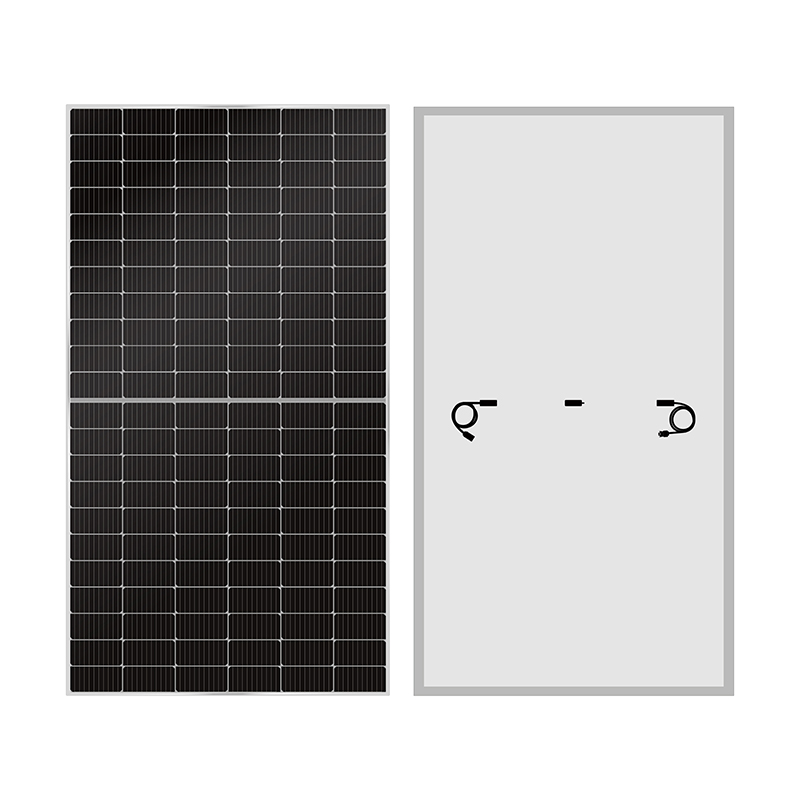

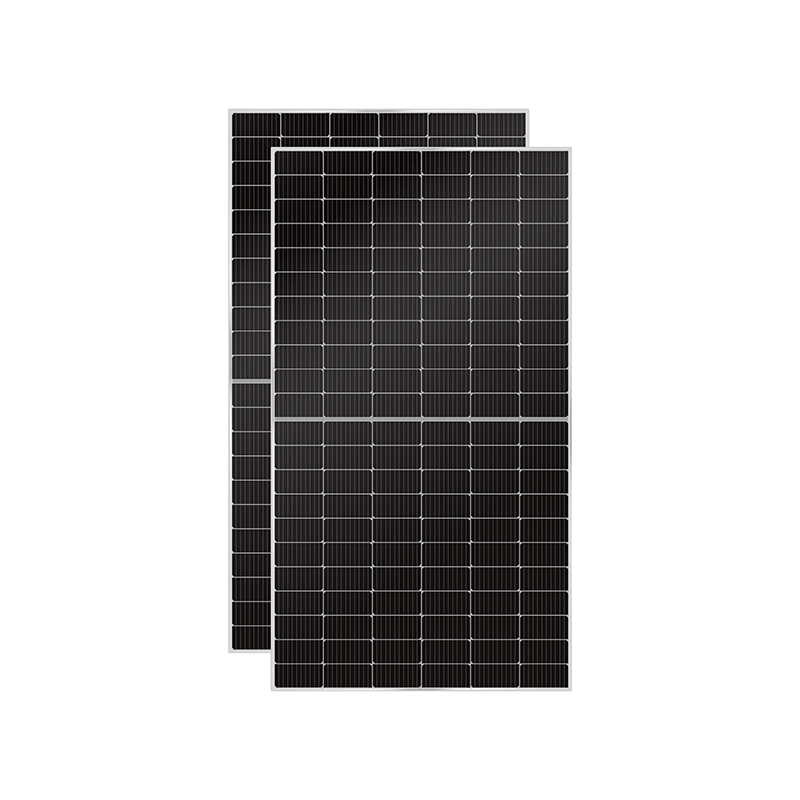

Mono Half-Cell PERC 480-500W Solar Panel

Type: Monofacial
Cell Type: Monocrystalline PERC half-cell
Number of cells:132
Maximum system voltage:1500V DC
Maximum fuse rated current:25A
Frame:Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet:white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm,length can be customized

ORDER Now

Product Code	LK-132M-480W480W	LK-132M-485W485W	LK-132M-490W490W	LK-132M-495W495W	LK-132M-500W500W
Rated Maximum Power at STC(w) STC(w)	480	485	490	495	500
Open Circuit Voltage(VOC/v) Voc/v	45.12	45.38	45.62	45.87	45.98
Maximum Power Voltage(Vmp/V) Vmp/V	37.65	37.83	38.04	38.25	38.43
Short Circuit Current(Isc/A)Isc/A	13.64	13.70	13.76	13.81	13.87
Maximum Power Current(imp/A)imp/A	12.75	12.82	12.88	12.94	13.01
Dimension(mm)Dim.(mm)	2100113435
Weight(kg)Weight(kg)	25
Power tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.29%/°C
γ Pmp	-0.4%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 132M- ()
