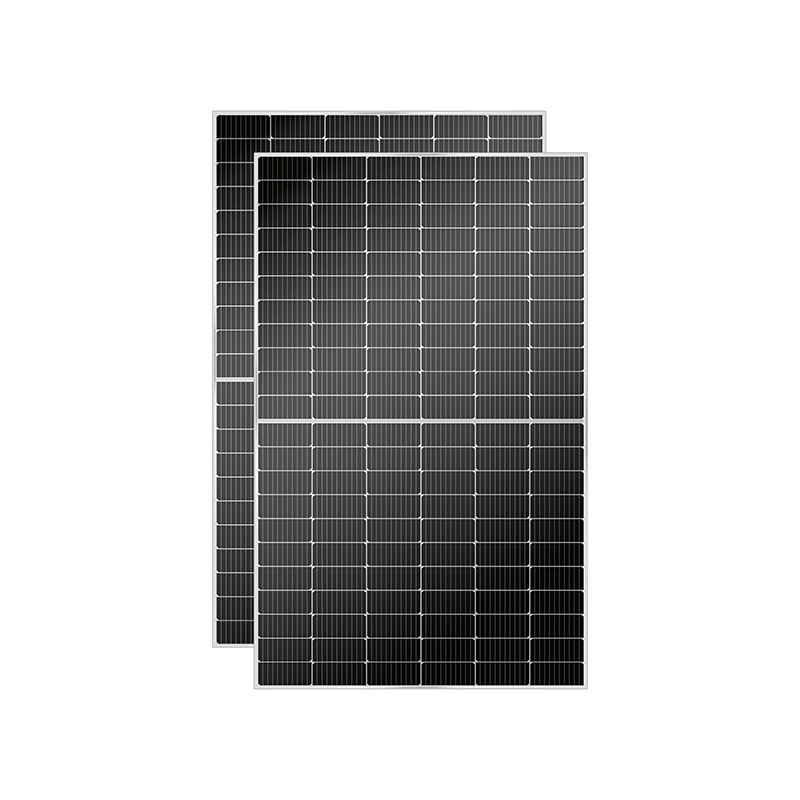

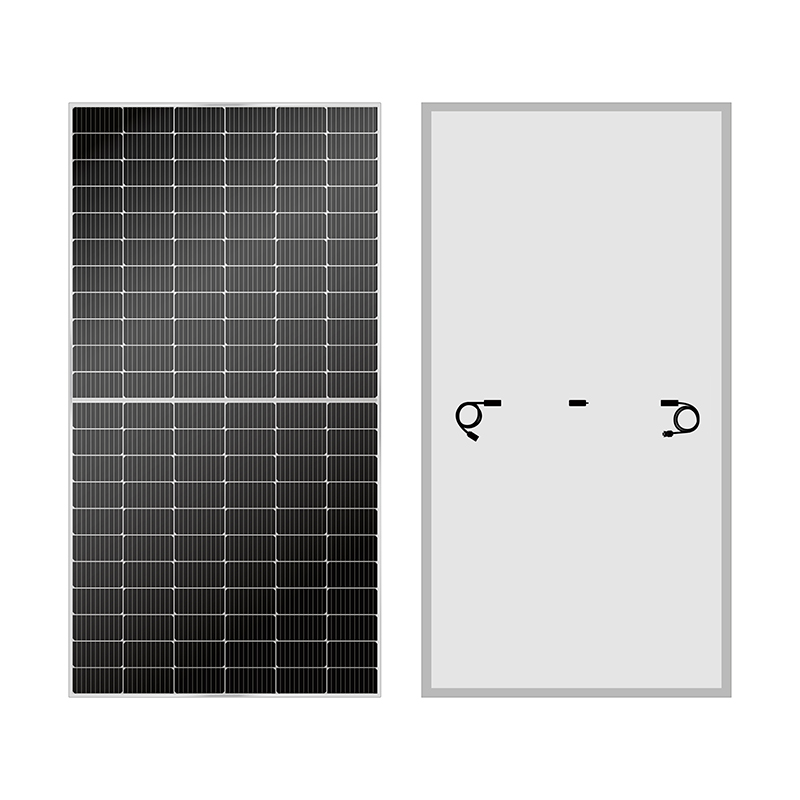

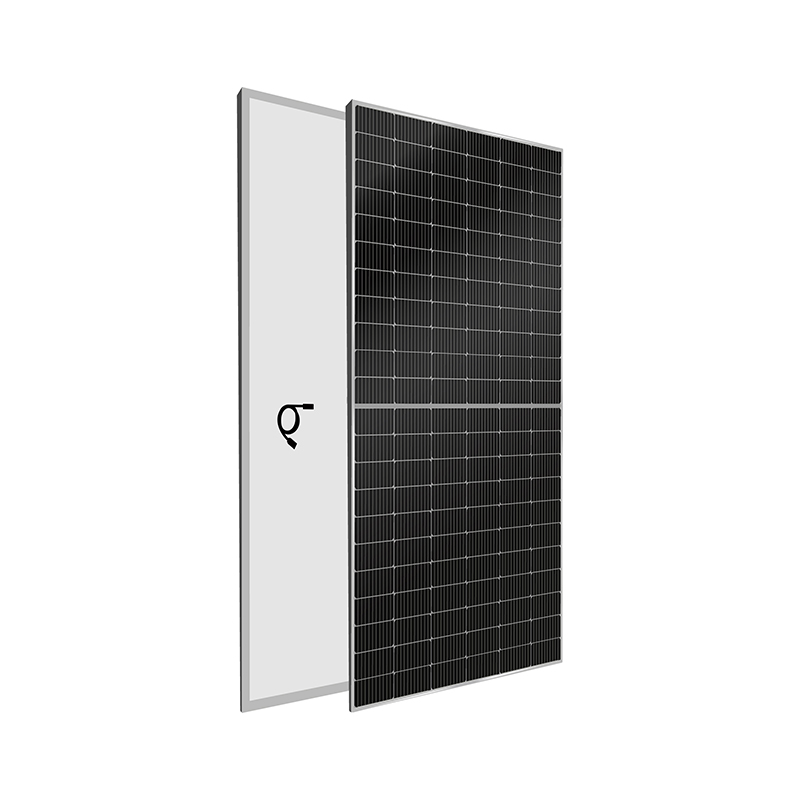

Mono PERC Half-Cell 500-510W Solar Panel

Type: Monofacial
Cell Type: Monocrystalline PERC half-cell
Number of cells:132
Maximum system voltage:1500V DC
Maximum fuse rated current:25A
Frame:Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet:white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm,length can be customized

ORDER Now

Product Code	Lk-132M-500W500W	Lk-132M-505W505W	Lk-132M-510W510W
Rated Maximum Power at STC(w) STC(w)	500W	505W	510W
Open Circuit Voltage(VOC/v) Voc/v	45.40	45.55	45.70
Maximum Power Voltage(Vmp/V) Vmp/V	37.83	38.04	38.21
Short Circuit Current(Isc/A)Isc/A	13.83	13.88	13.94
Maximum Power Current(imp/A)imp/A	13.22	13.28	13.35
Dimension(mm)Dim.(mm)	2094113435
Weight(kg)Weight(kg)	26.5
Power tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.282%/°C
γ Pmp	-0.348%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 132M- ()
