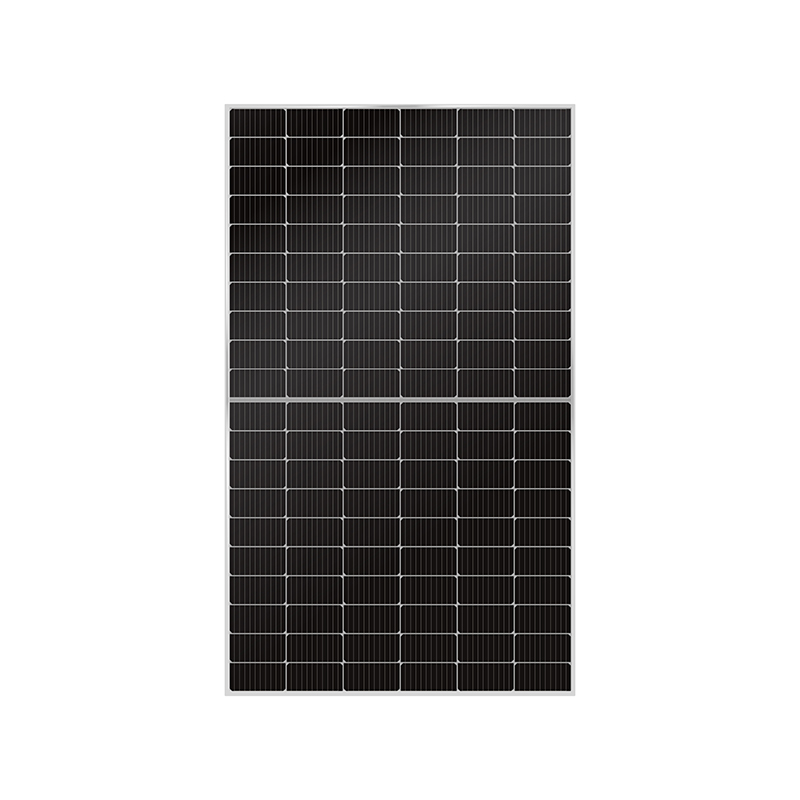

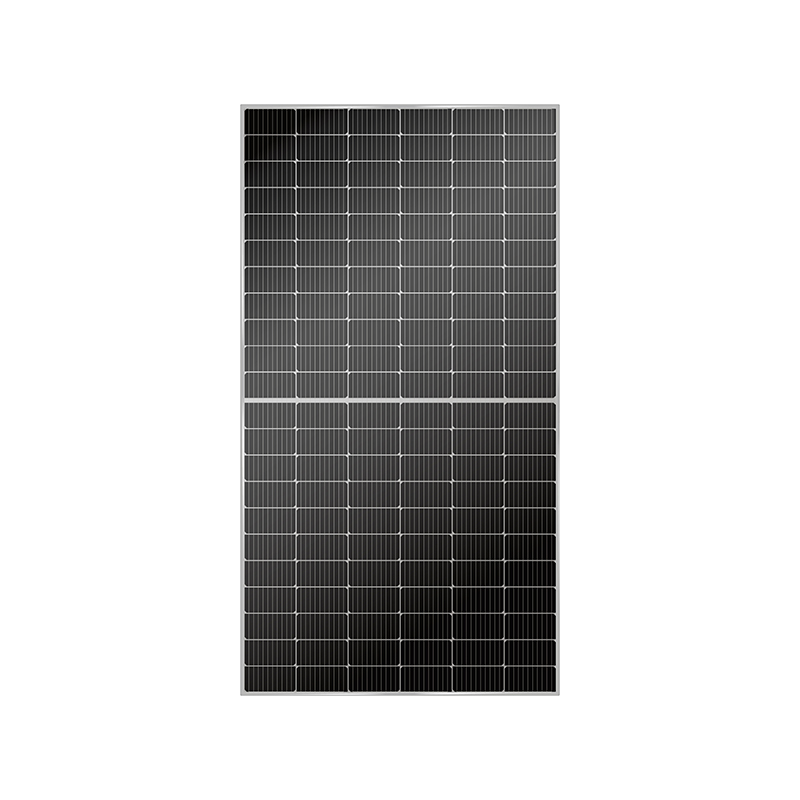

Type: Monofacial
Cell Type: Monocrystalline PERC half-cell
Number of cells:108
Maximum system voltage:1500V DC
Maximum fuse rated current:25A
Frame:Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet:white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm,length can be customized
| Product Code | LK-108M-390W390W | LK-108M-395W395W | LK-108M-400W400W | LK-108M-405W405W | LK-108M-410W410W | LK-108M-415W415W |
|---|---|---|---|---|---|---|
| Rated Maximum Power at STC(w) STC(w) | 390 | 395 | 400 | 405 | 410 | 415 |
| Open Circuit Voltage(VOC/v) Voc/v | 36.67 | 36.91 | 37.10 | 37.33 | 37.58 | 37.83 |
| Maximum Power Voltage(Vmp/V) Vmp/V | 30.59 | 30.76 | 30.98 | 31.23 | 31.44 | 31.66 |
| Short Circuit Current(Isc/A)Isc/A | 13.63 | 13.71 | 13.80 | 13.87 | 13.94 | 14.02 |
| Maximum Power Current(imp/A)imp/A | 12.75 | 12.84 | 12.91 | 12.97 | 13.04 | 13.11 |
| Dimension(mm)Dim.(mm) | 1724*1134*35 | |||||
| Weight(kg)Weight(kg) | 19.5 | |||||
| Power tolerance | ±3% tolerance | |||||
| α ISC | -0.05%/°C | |||||
| β Voc | -0.29%/°C | |||||
| γ Pmp | -0.4%/°C | |||||
| STC (Standard test conditions) | AM1.5, 1000W/m², 25±2°C | |||||
| Remarks: | model is LK- 108M- () | |||||
