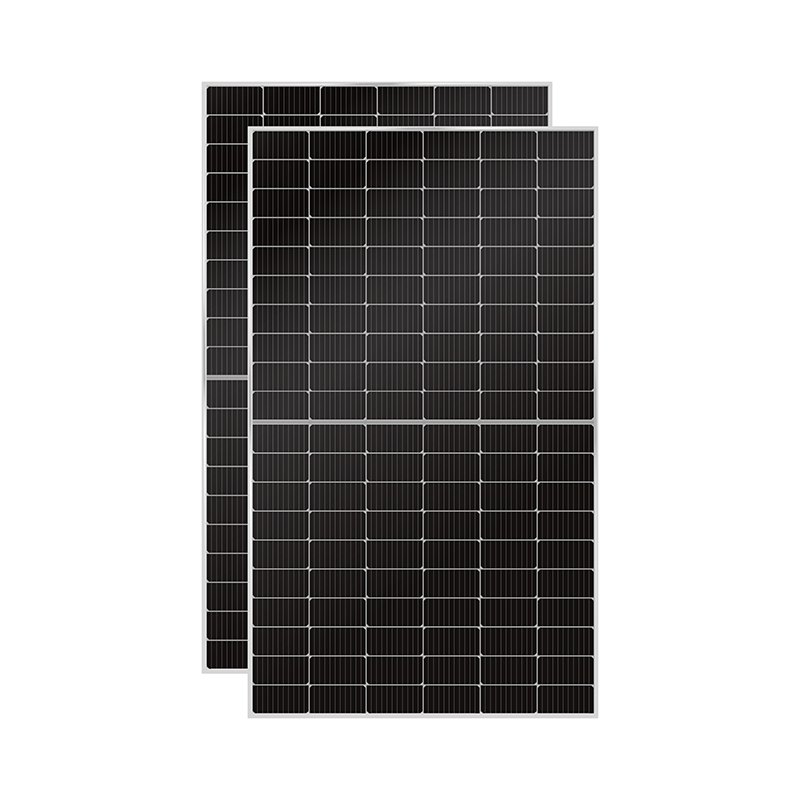

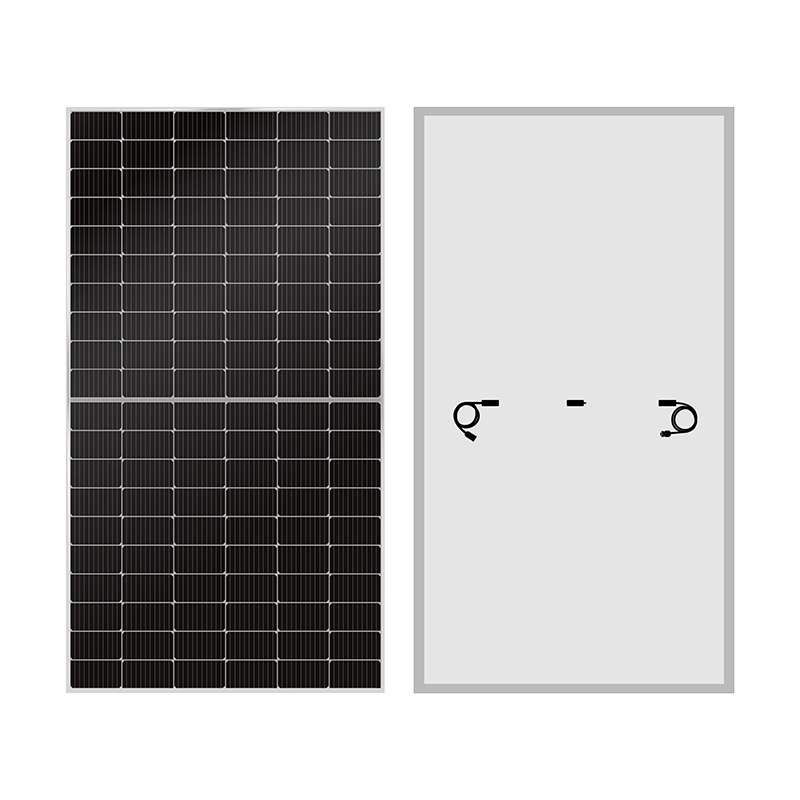

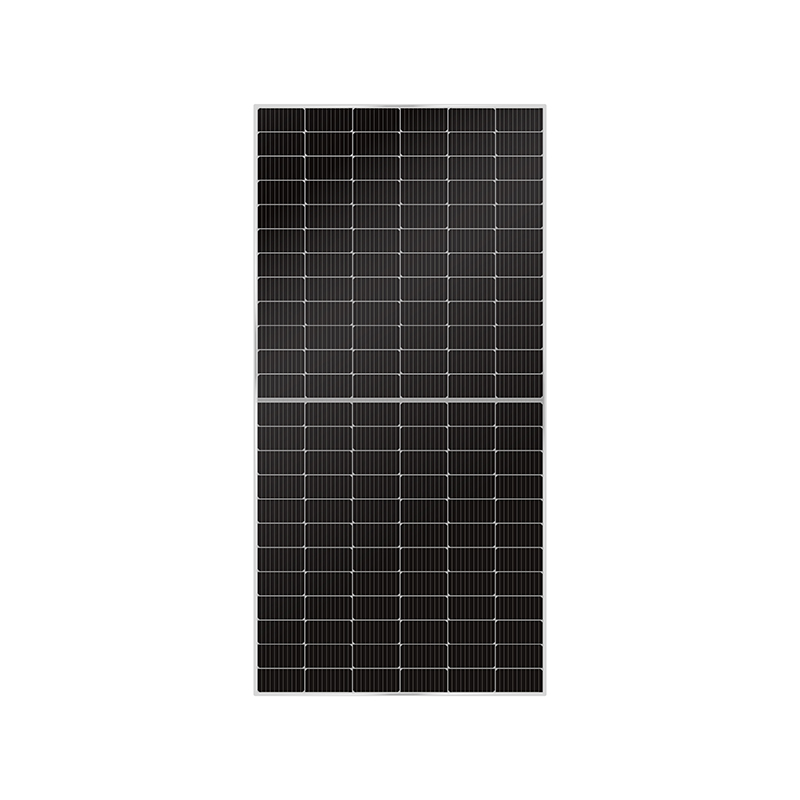

Type: Bifacial
Cell Type: Monocrystalline PERC half-cell
Number of cells:120
Maximum system voltage:1500V DC
Maximum fuse rated current:25A
Frame:Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet:white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm,length can be customized
| Product Code | LK-120M-435W435W | LK-120M-440W440W | LK-120M-445W445W | LK-120M-450W450W | LK-120M-455W455W | LK-120M-460W460W |
|---|---|---|---|---|---|---|
| Rated Maximum Power at STC(w) STC(w) | 435 | 440 | 445 | 450 | 455 | 460 |
| Open Circuit Voltage(VOC/v) Voc/v | 40.96 | 41.08 | 41.21 | 41.33 | 41.46 | 41.58 |
| Maximum Power Voltage(Vmp/V) Vmp/V | 34.29 | 34.42 | 34.54 | 34.67 | 34.79 | 34.92 |
| Short Circuit Current(Isc/A)Isc/A | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 |
| Maximum Power Current(imp/A)imp/A | 12.69 | 12.79 | 12.89 | 12.99 | 13.08 | 13.18 |
| Dimension(mm)Dim.(mm) | 1915*1134*35 | |||||
| Weight(kg)Weight(kg) | 23 | |||||
| Power tolerance | ±3% tolerance | |||||
| α ISC | -0.05%/°C | |||||
| β Voc | -0.29%/°C | |||||
| γ Pmp | -0.4%/°C | |||||
| STC (Standard test conditions) | AM1.5, 1000W/m², 25±2°C | |||||
| Remarks: | model is LK- 120M- () | |||||
