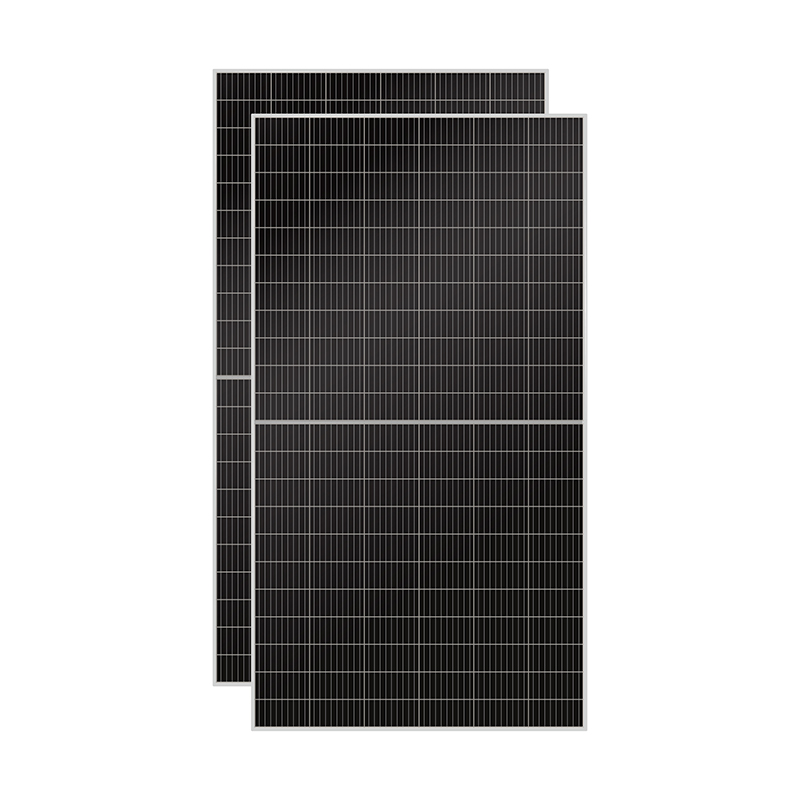

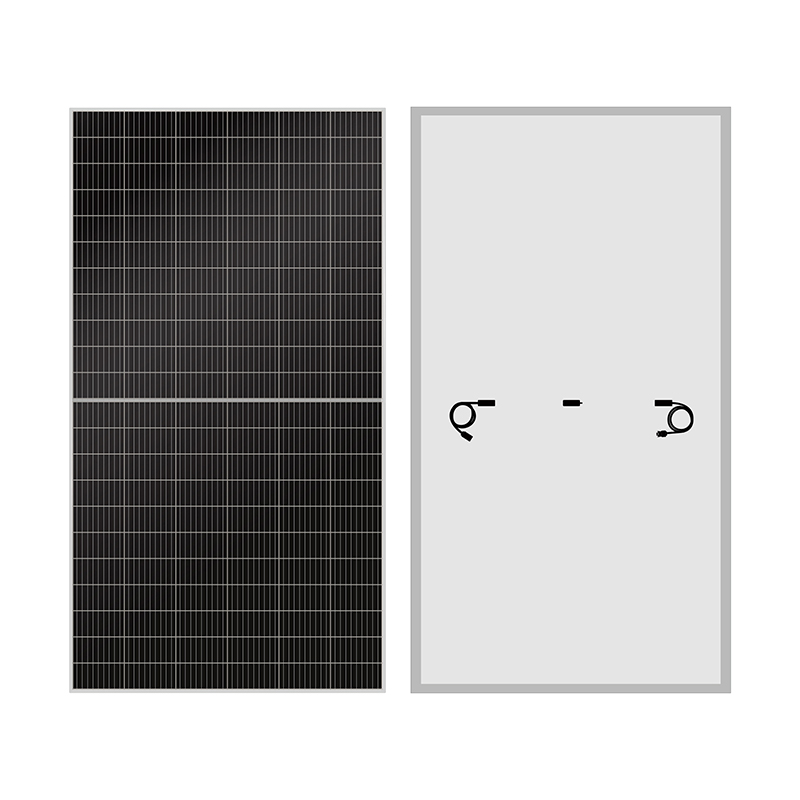

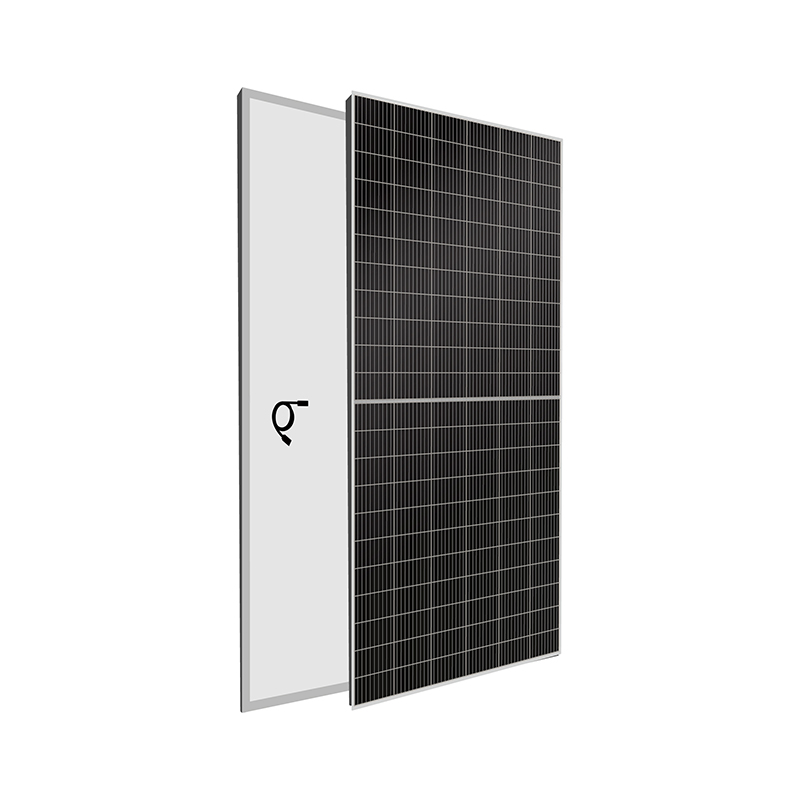

Mono Half-cell 635-665W Solar Panel

Type: Monofacial
Cell Type: Monocrystalline half-cell
Number of cells:132
Maximum system voltage:1500V DC
Maximum fuse rated current:30A
Frame: Anodized aluminum alloy
Glass: 3.2mm Low-iron ultra-white tempered glass
Junction box: IP68, TUV&UL
Backsheet: white
Connectors: MC4 compatible
Cable:4.0mm² default 300mm, length can be customized

ORDER Now

Product Code	LK-132M-635W635W	LK-132M-640W640W	LK-132M-645W645W	LK-132M-650W650W	LK-132M-655W655W	LK-132M-660W660W	LK-132M-665W665W
Rated Maximum Power at STC(w) STC(w)	635	640	645	650	655	660	665
Open Circuit Voltage(VOC/v) Voc/v	44.76	44.93	45.13	45.31	45.50	45.66	45.72
Maximum Power Voltage(Vmp/V) Vmp/V	37.16	37.34	37.52	37.72	37.91	38.08	38.15
Short Circuit Current(Isc/A)Isc/A	18.14	18.19	18.24	18.29	18.34	18.39	18.52
Maximum Power Current(imp/A)imp/A	17.09	17.14	17.19	17.23	17.28	17.33	17.43
Dimension(mm)Dim.(mm)	2384130335
Weight(kg)Weight(kg)	34.5
Power Tolerance	±3% tolerance
α ISC	-0.05%/°C
β Voc	-0.29%/°C
γ Pmp	-0.4%/°C
STC (Standard test conditions)	AM1.5, 1000W/m², 25±2°C
Remarks:	model is LK- 132M- ()
