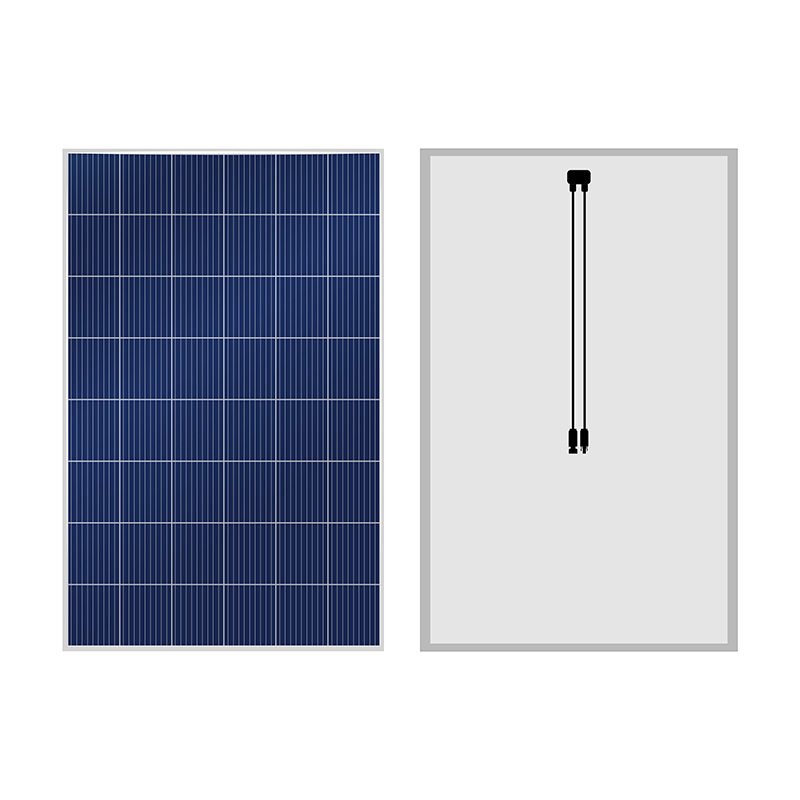

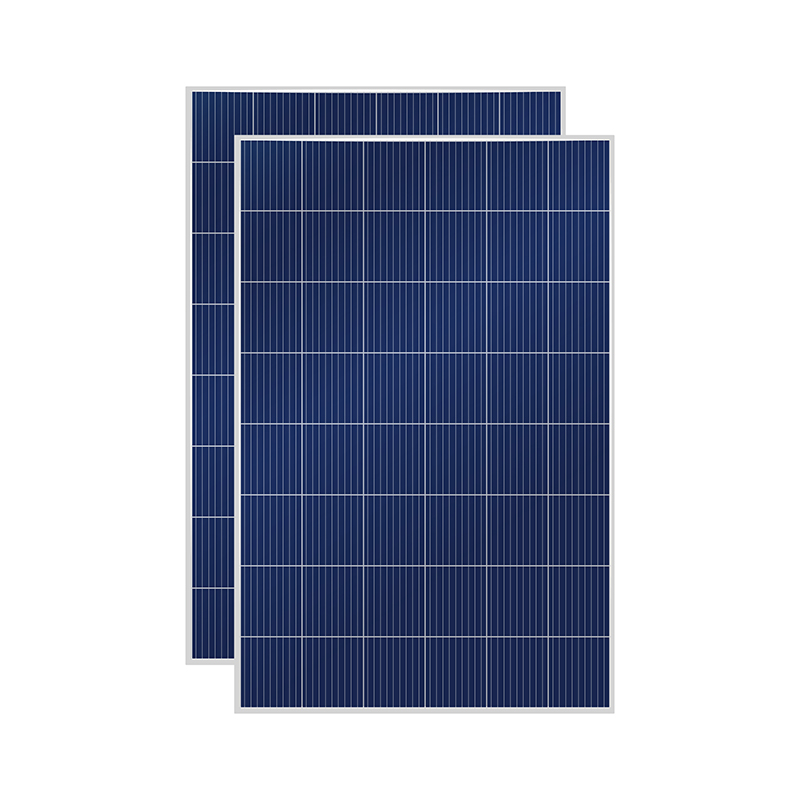

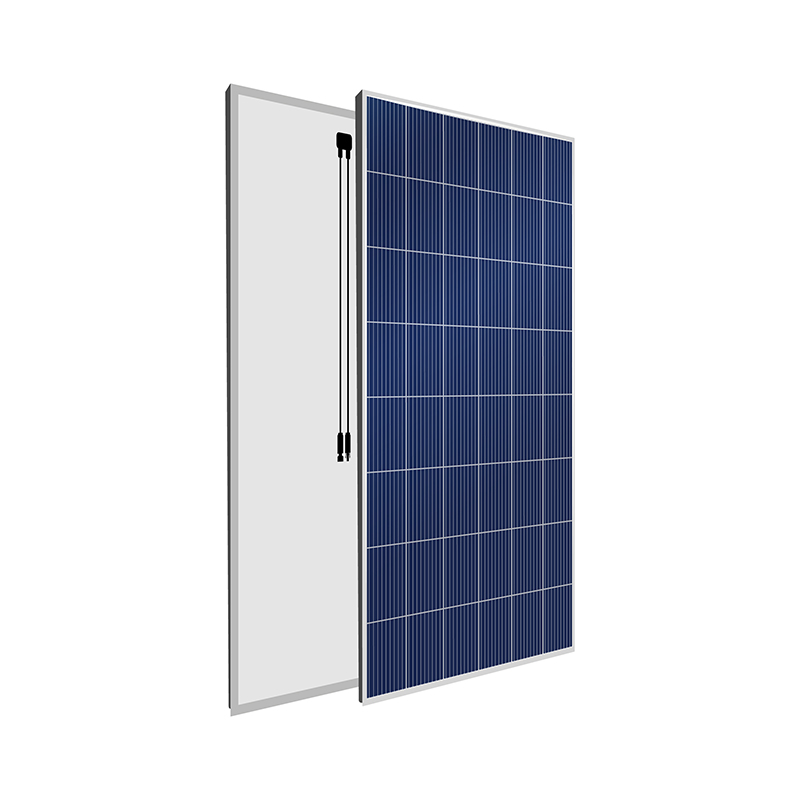

Cell Type: polycrystalline
Number of cells:48
Module efficiency:≥15.2%
Maximum system voltage:1000V DC
Maximum fuse rated current:15A
Frame:Anodized aluminum alloy
Glass: 3.2mm tempered glass
Junction box: IP65/IP67
Connectors: MC4 compatible
| Product Code | LK-48M-200W200W | LK-48M-210W210W | LK-48M-215W215W | LK-48M-220W220W | LK-48M-230W230W |
|---|---|---|---|---|---|
| Rated Maximum Power at STC(w) STC(w) | 200 | 210 | 215 | 220 | 230 |
| Open Circuit Voltage(VOC/v) Voc/v | 29.7 | 30.3 | 30.6 | 30.9 | 31.2 |
| Maximum Power Voltage(Vmp/V) Vmp/V | 24.2 | 24.6 | 24.9 | 25.2 | 25.5 |
| Short Circuit Current(Isc/A)Isc/A | 8.86 | 9.00 | 9.07 | 9.13 | 9.39 |
| Maximum Power Current(imp/A)imp/A | 8.27 | 8.54 | 8.64 | 8.74 | 9.02 |
| Dimension(mm)Dim.(mm) | 1324*992*35 | ||||
| Weight(kg)Weight(kg) | 15 | ||||
| Power Tolerance | ±3% tolerance | ||||
| α ISC | -0.05%/°C | ||||
| β Voc | -0.29%/°C | ||||
| γ Pmp | -0.4%/°C | ||||
| STC (Standard test conditions) | AM1.5, 1000W/m², 25±2°C | ||||
| Remarks: | model is LK- 48M- () | ||||
